Surface Mount Switch Kit - Long Range
Surface Mount Switch Kit - Long Range
SKU:LSK-1LR
In stock
Couldn't load pickup availability
What it is:

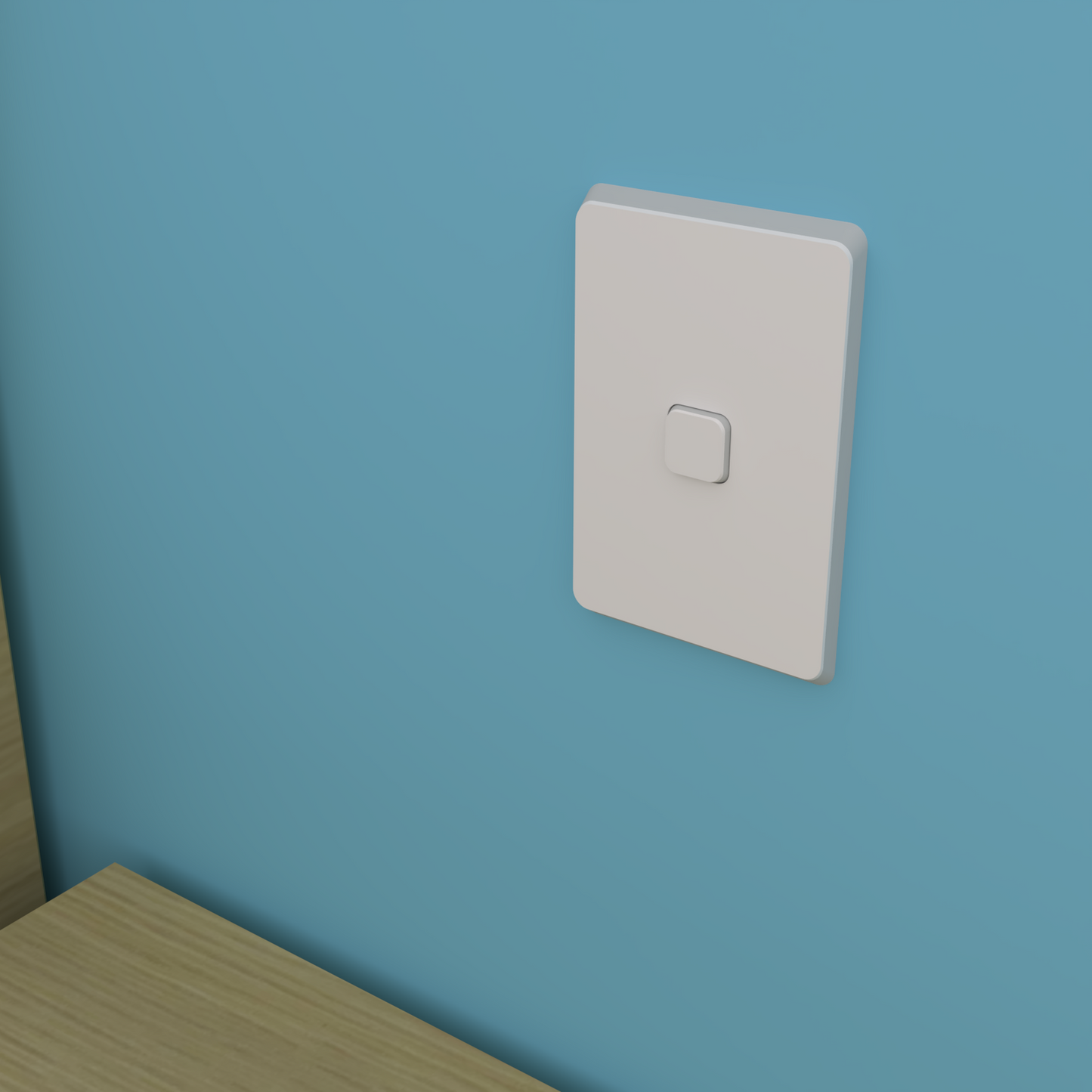

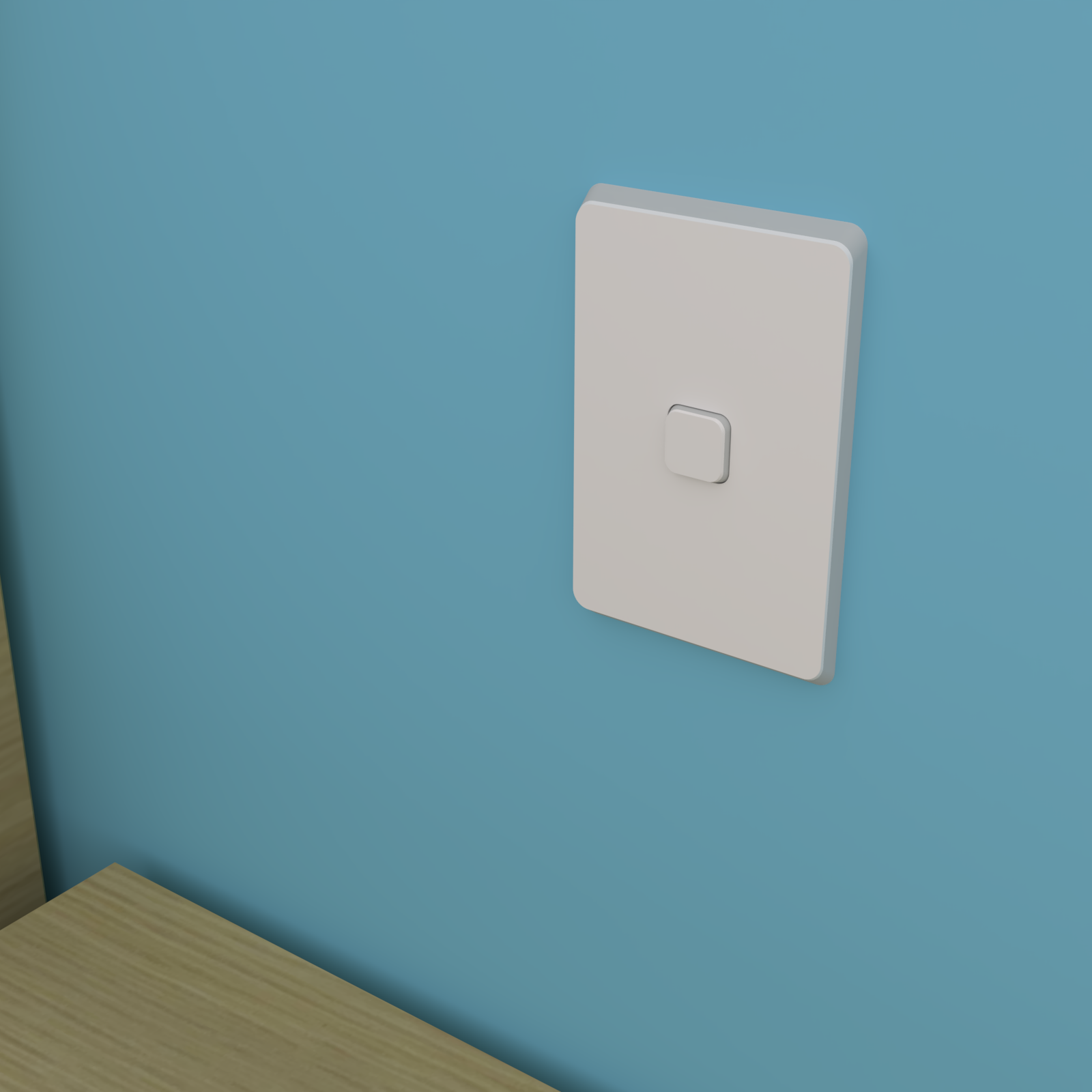

A kit containing a ready-to-mount wireless push-button switch that matches AU/NZ switch styles, and a mains powered receiver. Mount the switch anywhere without cutting into walls - no wiring needed at the switch location. Using long range RF technology, it works at distances over 300 meters.
How it works:
The wireless push-button switch transmits to the receiver to toggle the lights on every press (see the video).
Quick specs:
| Receiver supply | 100-240VAC 50/60Hz |
| Maximum load | 6A |
| Receiver dimensions | 73mm x 43mm x 26mm |
| Switch dimensions | 120mm x 78mm x 10mm |
| Wireless range | 300 meters (915MHz) |
| Battery life | 6-7 years (CR2032) |

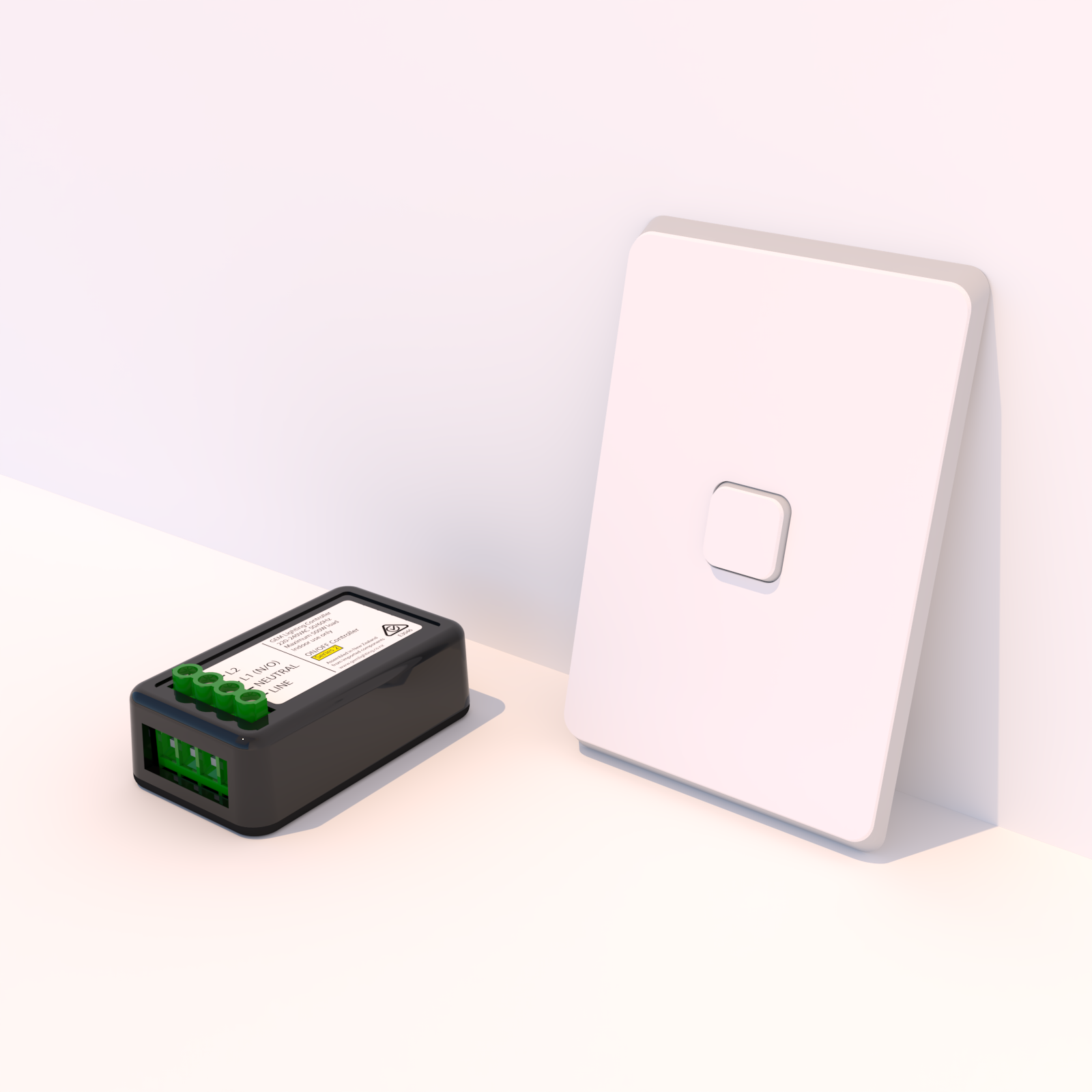

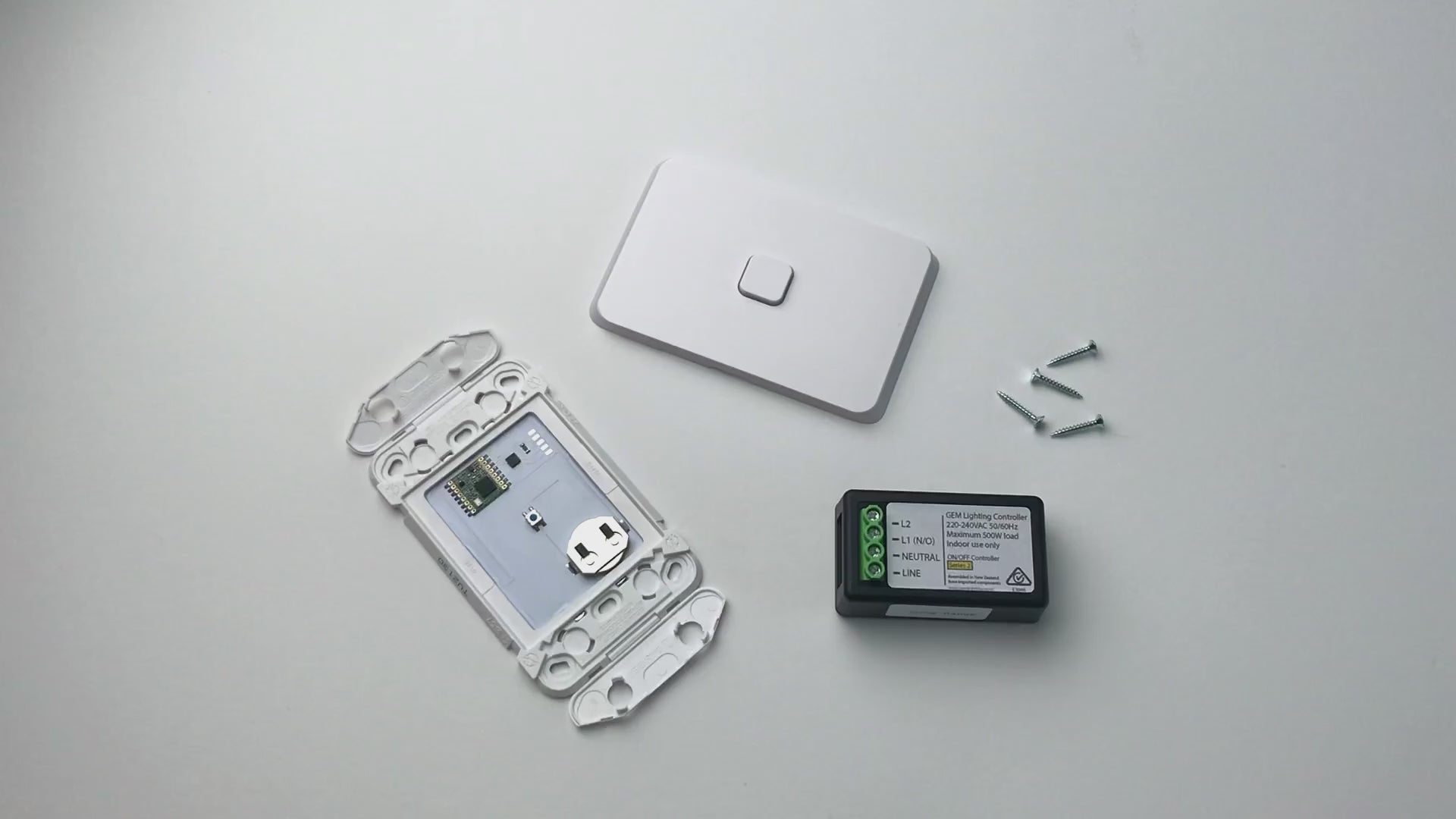

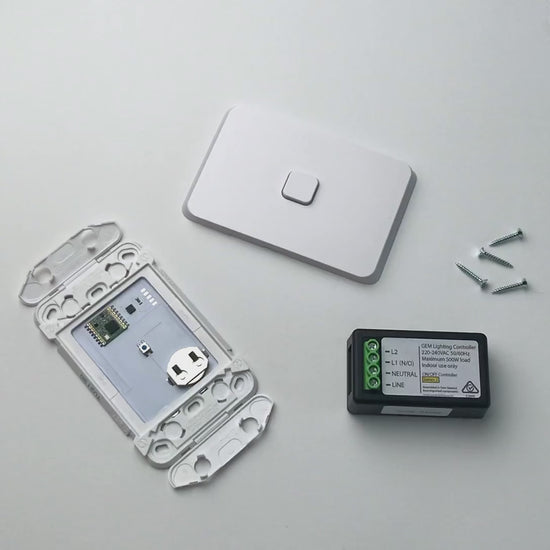

Inside the box, you will find:

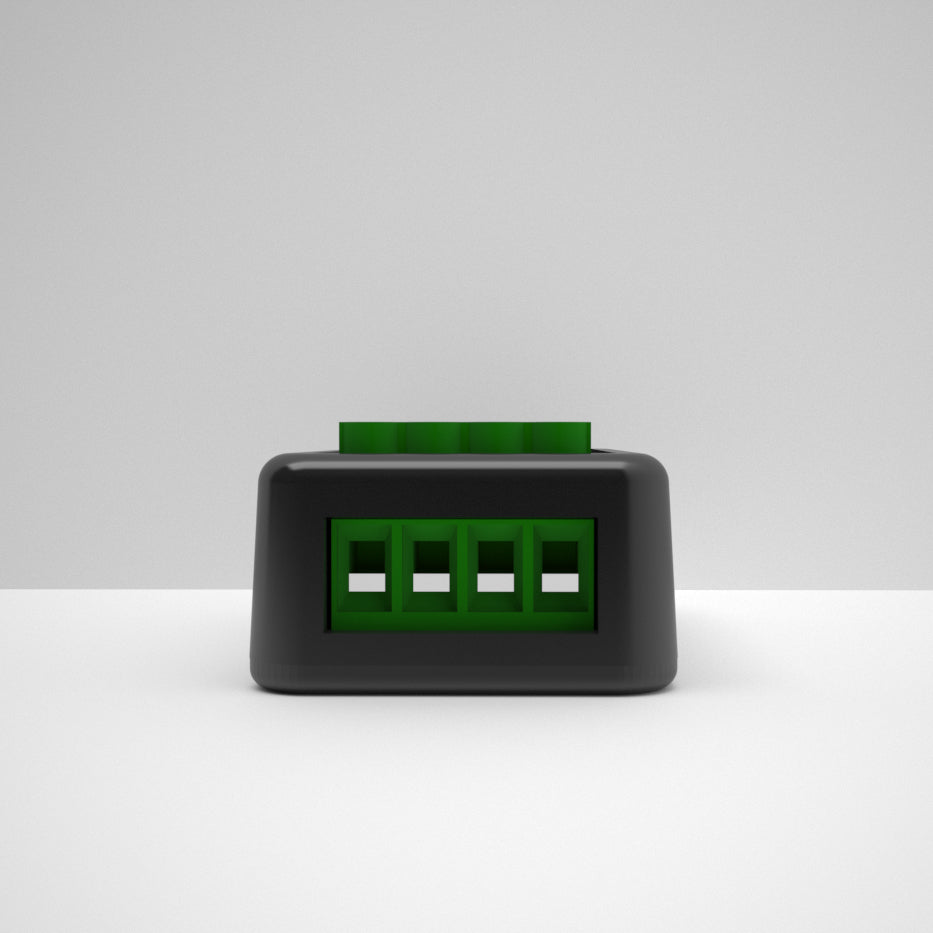

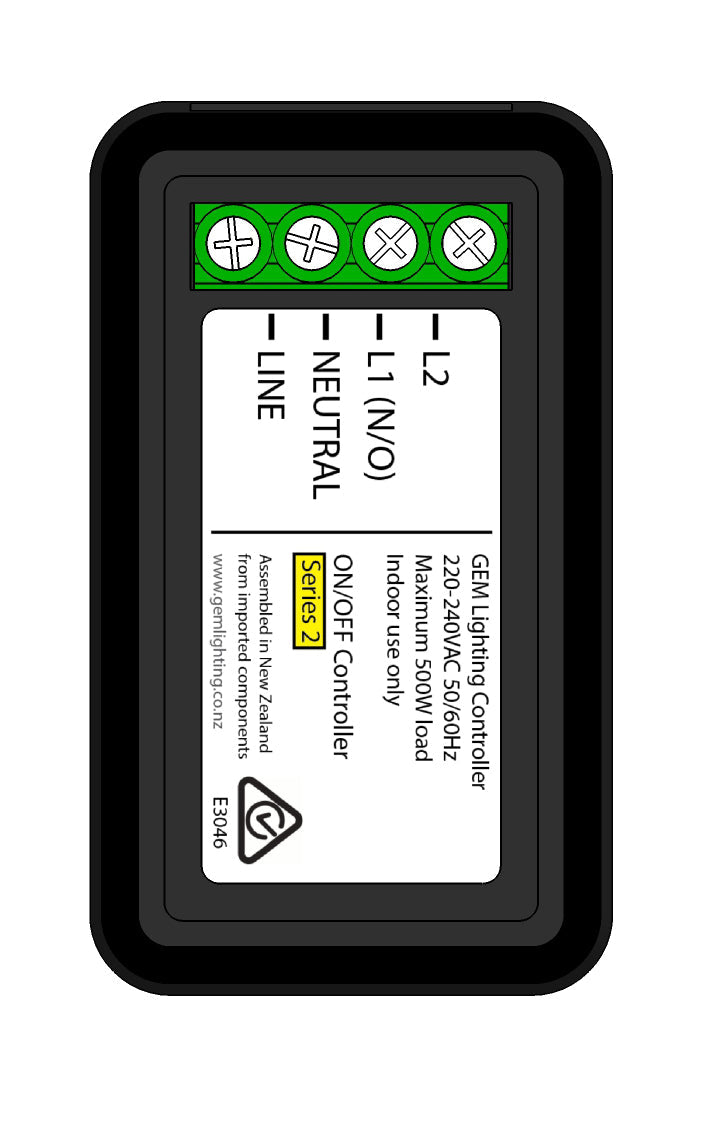

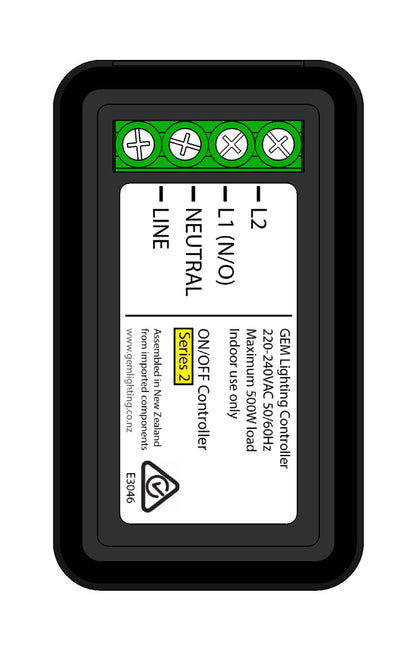

- Long Range Wireless Receiver with integrated relay.

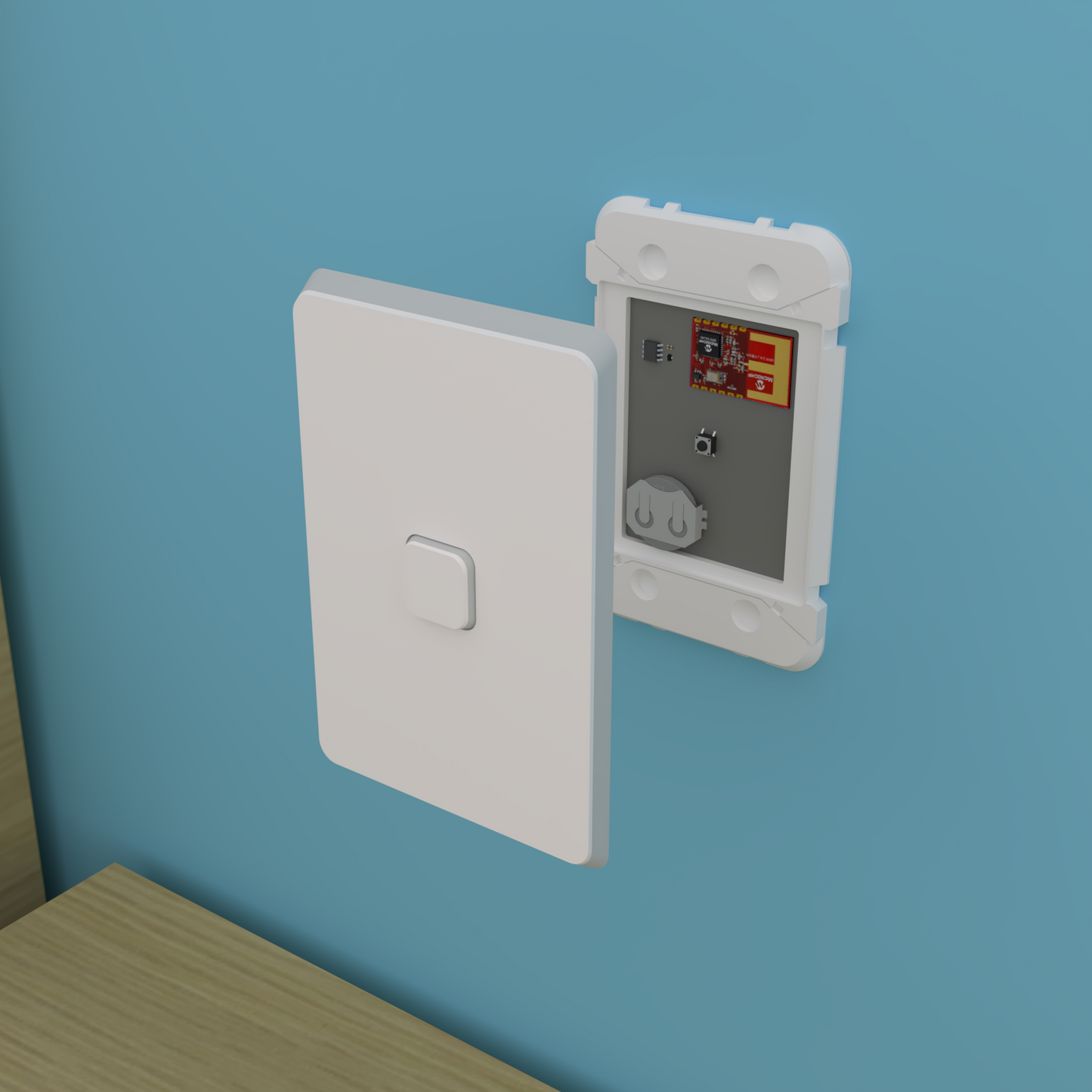

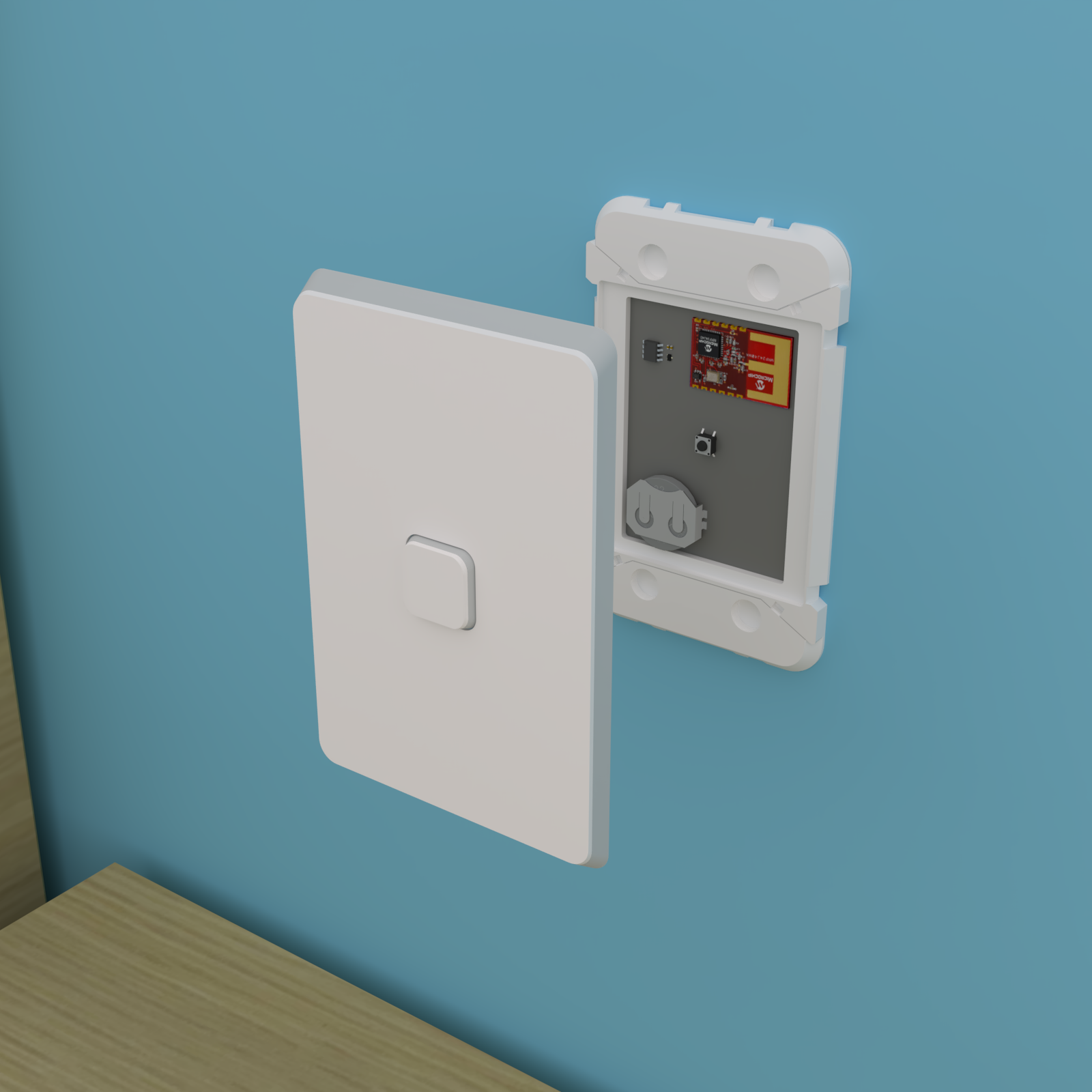

- Long Range Wireless Surface Mounted Switch including battery.
- A Wiring Guide and Installation Instructions.
Installation options:

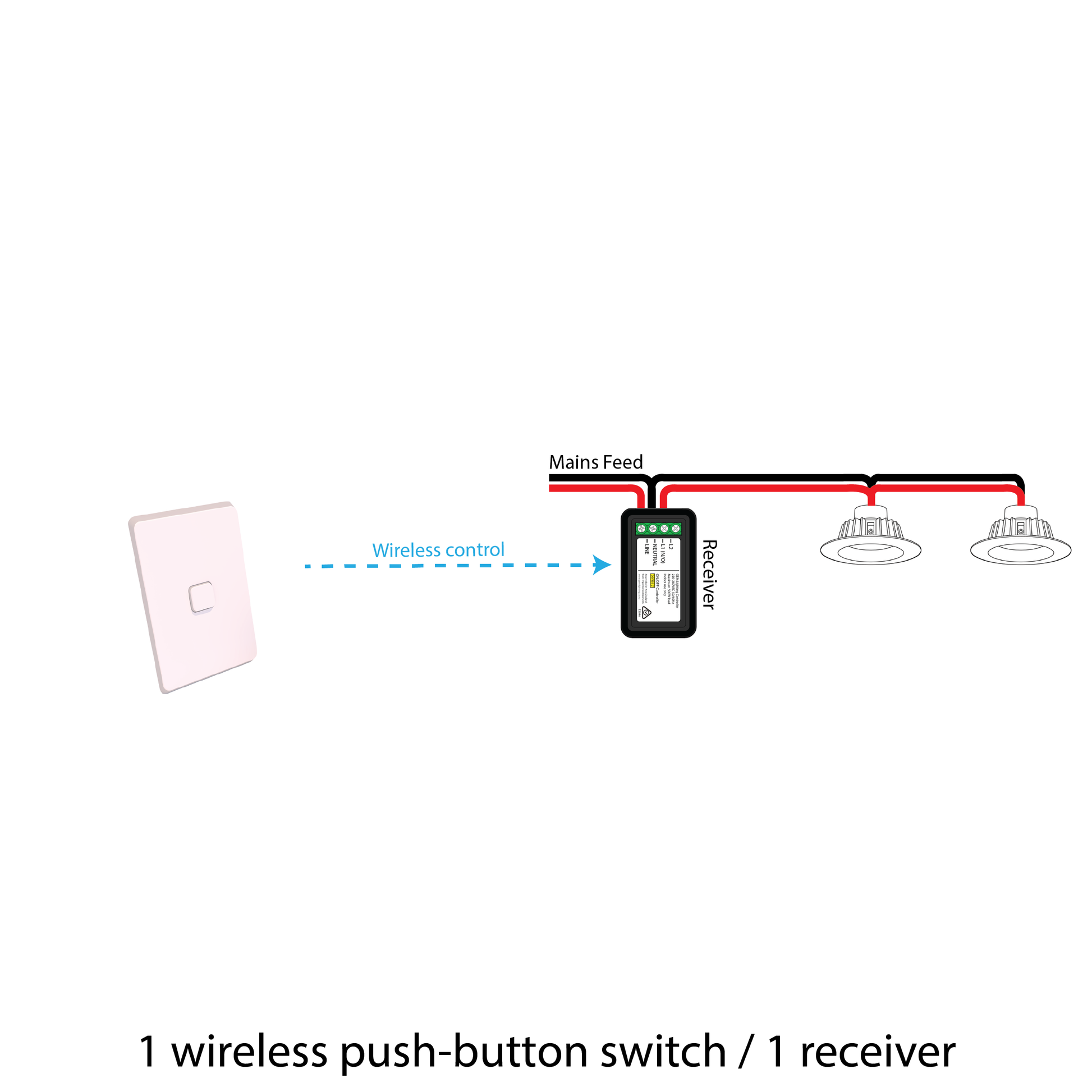

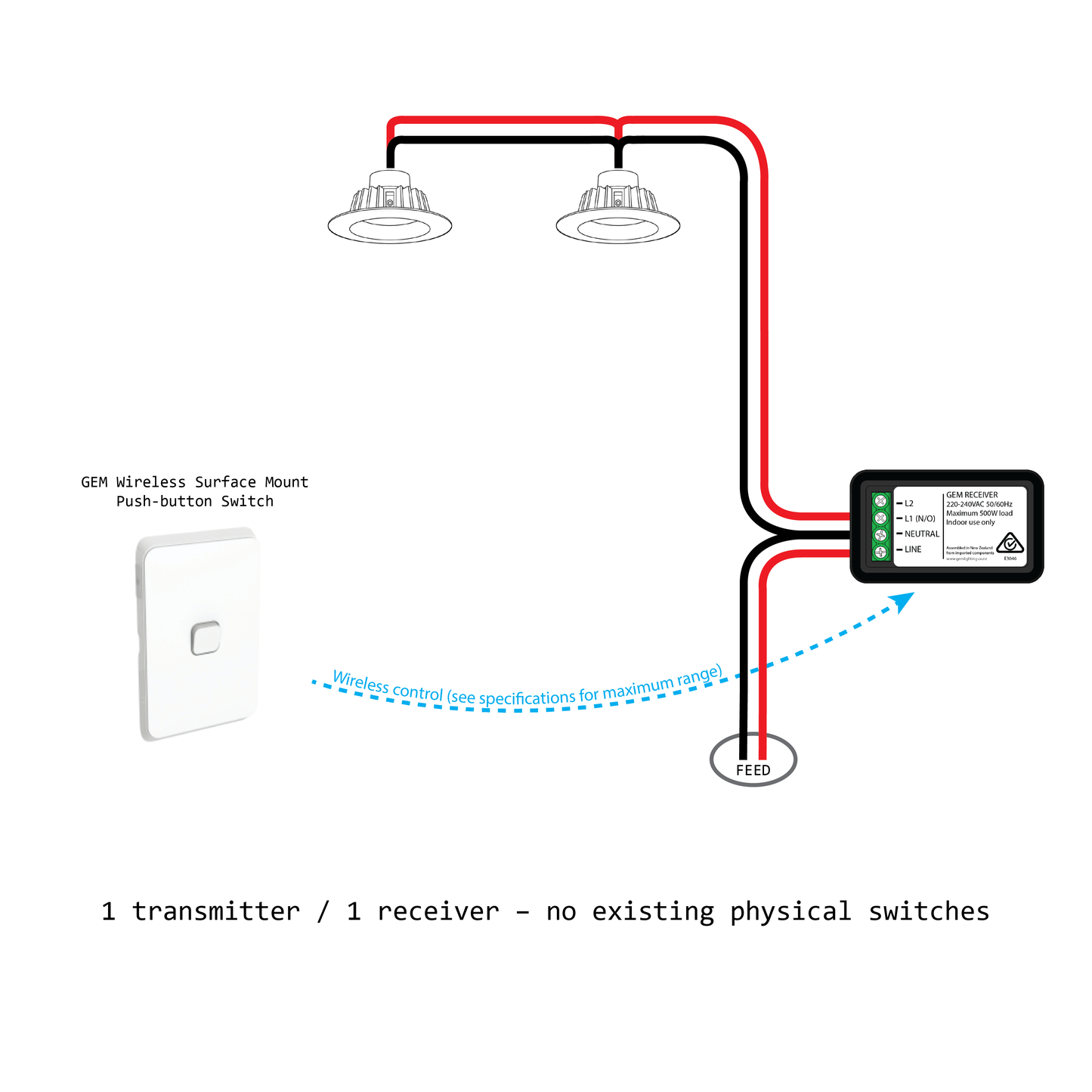

- Standalone setup: Connect the receiver directly to your lights to use wireless switches only.

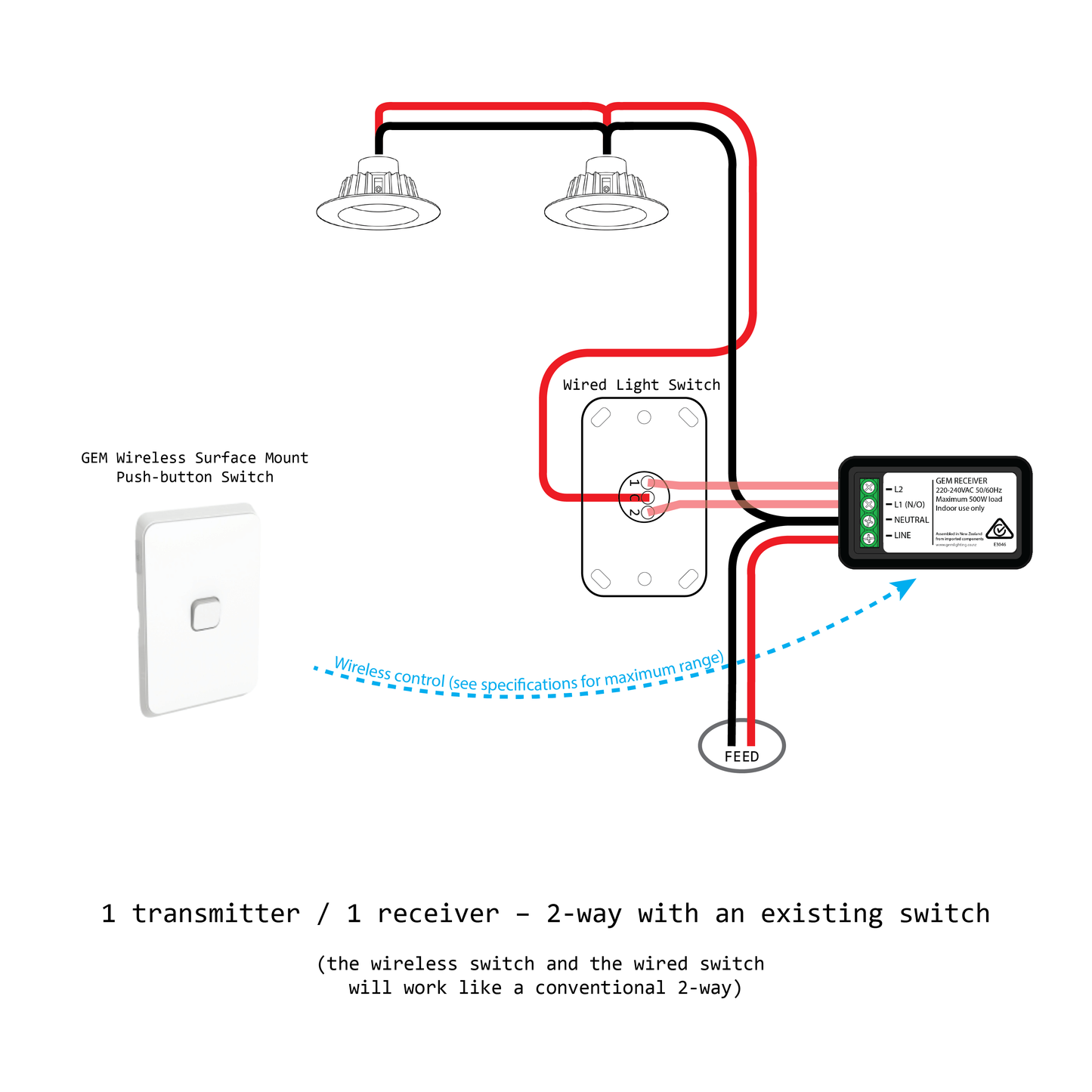

- Add on to an existing switch: Connect the receiver to your current switch to use both the physical switch and wireless switch in a 2-way arrangement.
Quick tip: Already have a light switch? You only need the 1-switch kit to add another location for a 2-way setup. View the wiring diagram here.
Key features:
- No WiFi needed.
- Switch and receiver come pre-paired.

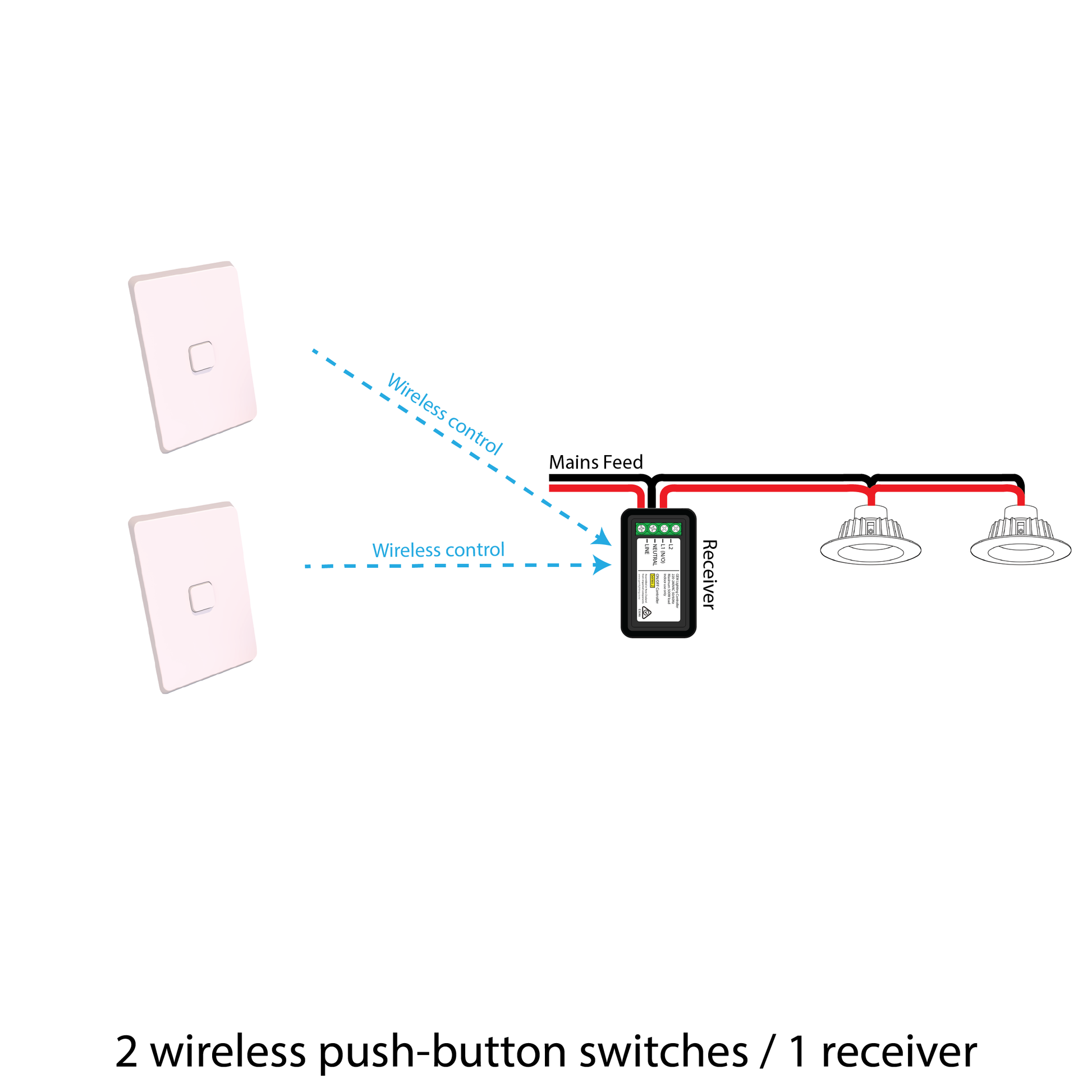

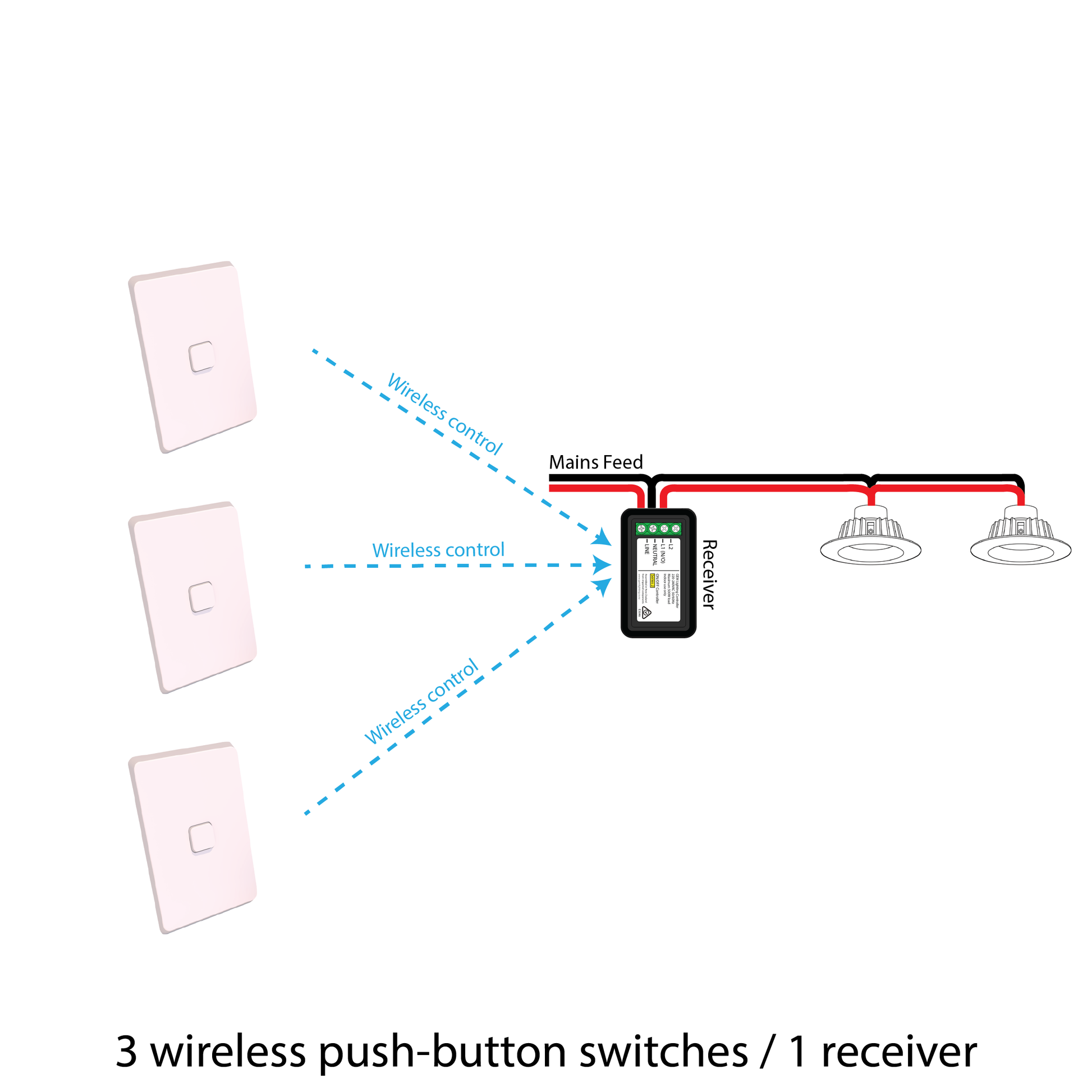

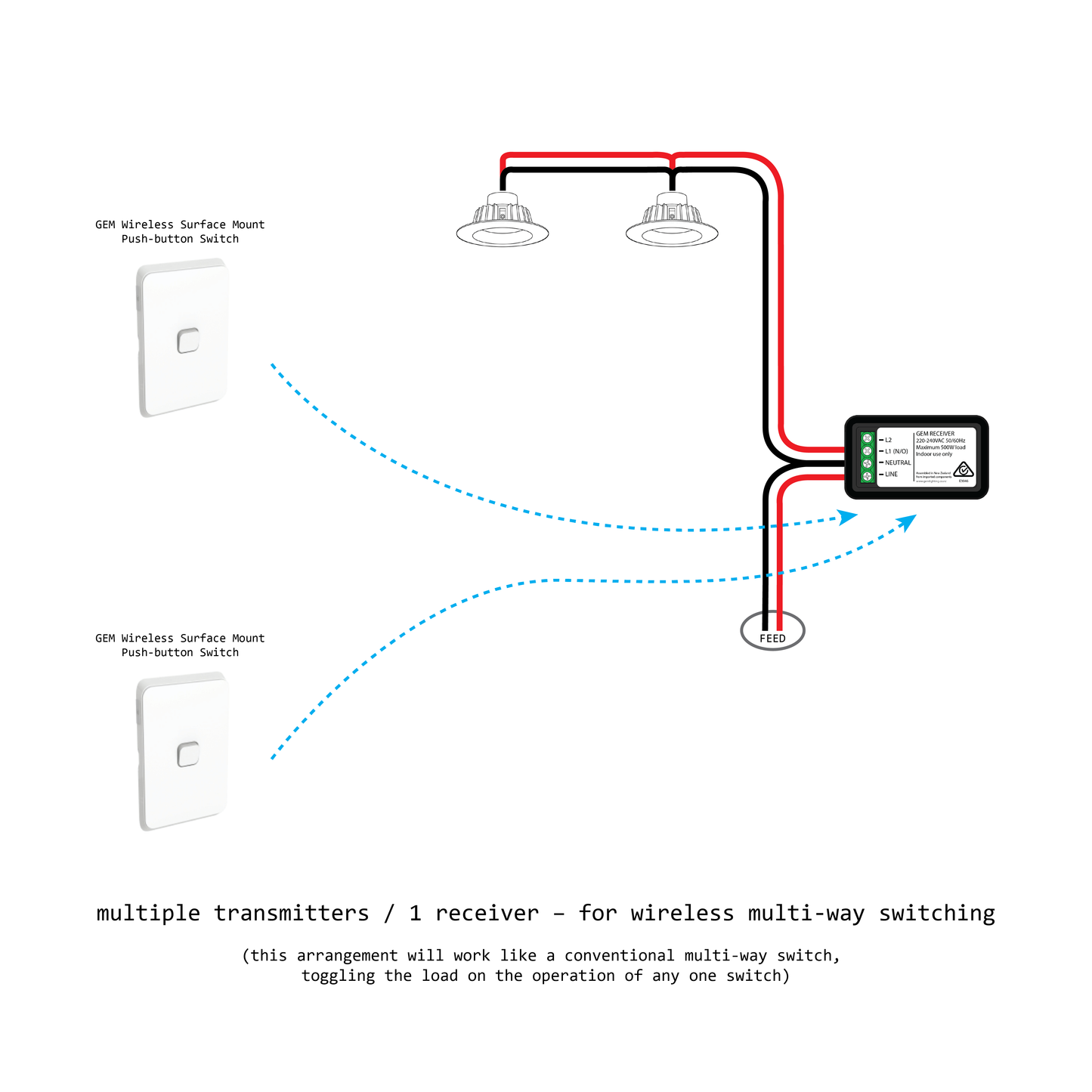

- Order multiple switches to switch lights from different locations.
- Signal works over 300 meters range through walls and obstacles.
- Use multiple kits in the same location without interference.
- Long battery life (6-7 years).
- Reliable connection with no interference from other wireless devices.
Tips for best use:
- Contactors and relays with AC coils can emit electromagnetic noise. If you intend to use such equipment nearby, ensure that there is at least 600mm separation from the receiver.
- Ambient temperature maximum is 45°C. Avoid enclosing the receiver with sources of heat like drivers, transformers, or luminaires.
- Metal sheeting can reduce the wireless range. Where possible, avoid using metal enclosures to house the units.
- Need to control gates or other momentary pulse loads? Contact our support team and we'll provide a special version designed for this purpose.
The GEM Surface Mount Switch Kit - Long Range is designed and assembled in New Zealand. The product complies with the relevant AS/NZS standards and is fit for sale in Australia and New Zealand. All GEM products have a 2 year replacement warranty.
