Switch Module Kit
Switch Module Kit
SKU:SMK-1
In stock
Couldn't load pickup availability
What it is:
A simple kit that lets you control your lights wirelessly without complex installation. Keep the same style as your existing switches - no drilling or complicated wiring needed.
How it works:

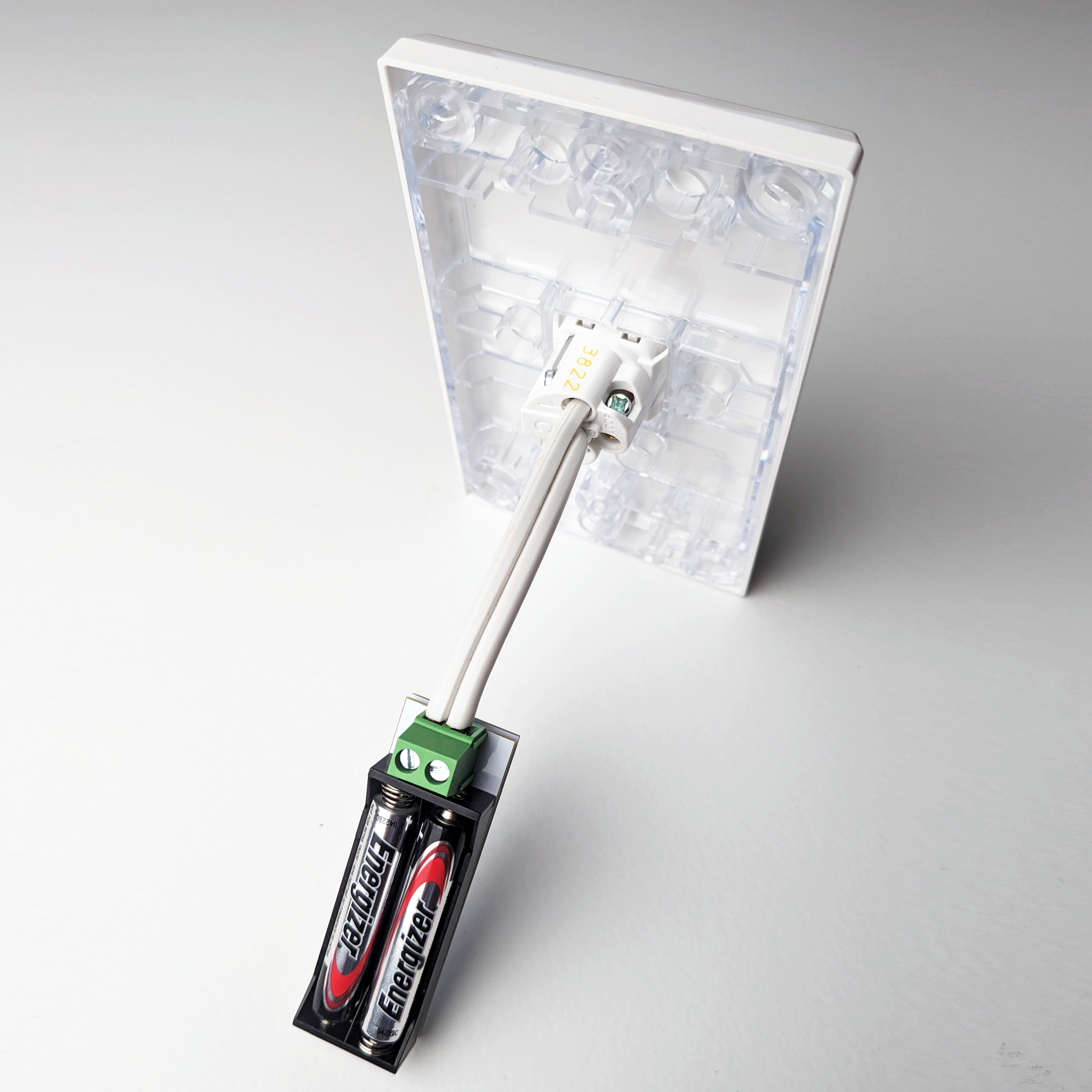

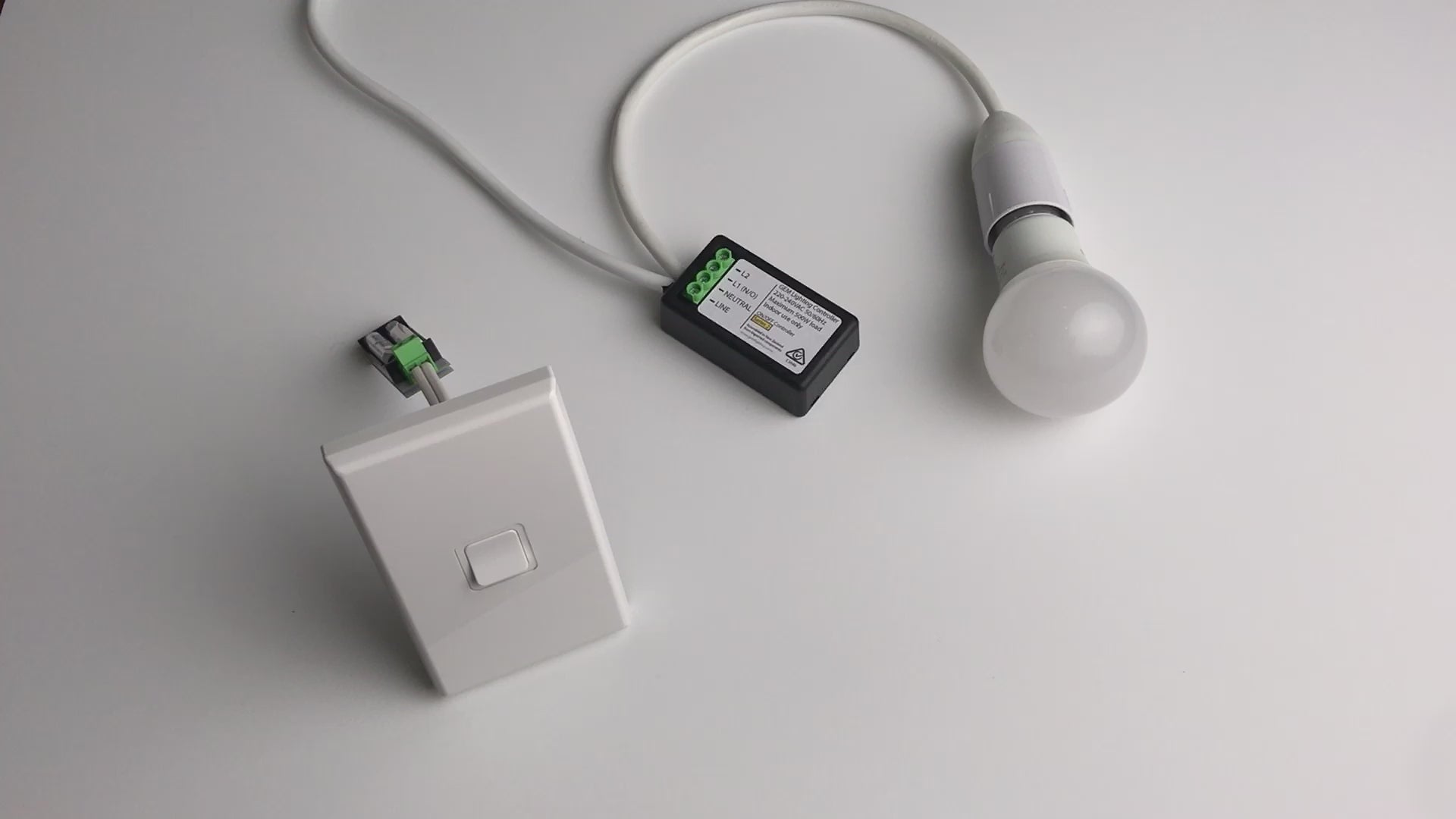

When the battery-powered switch module senses a change in the attached switch, it transmits to the receiver to switch the lights (see the video).
Quick specs:
| Receiver supply | 100-240VAC 50/60Hz |
| Maximum load | 6A |
| Receiver dimensions | 73mm x 43mm x 26mm |
| Module dimensions | 59mm x 20mm x 18mm |
| Wireless range | 15 meters (2.4GHz) |
| Battery life | 5 years (AAAA) |
Inside the box, you will find:

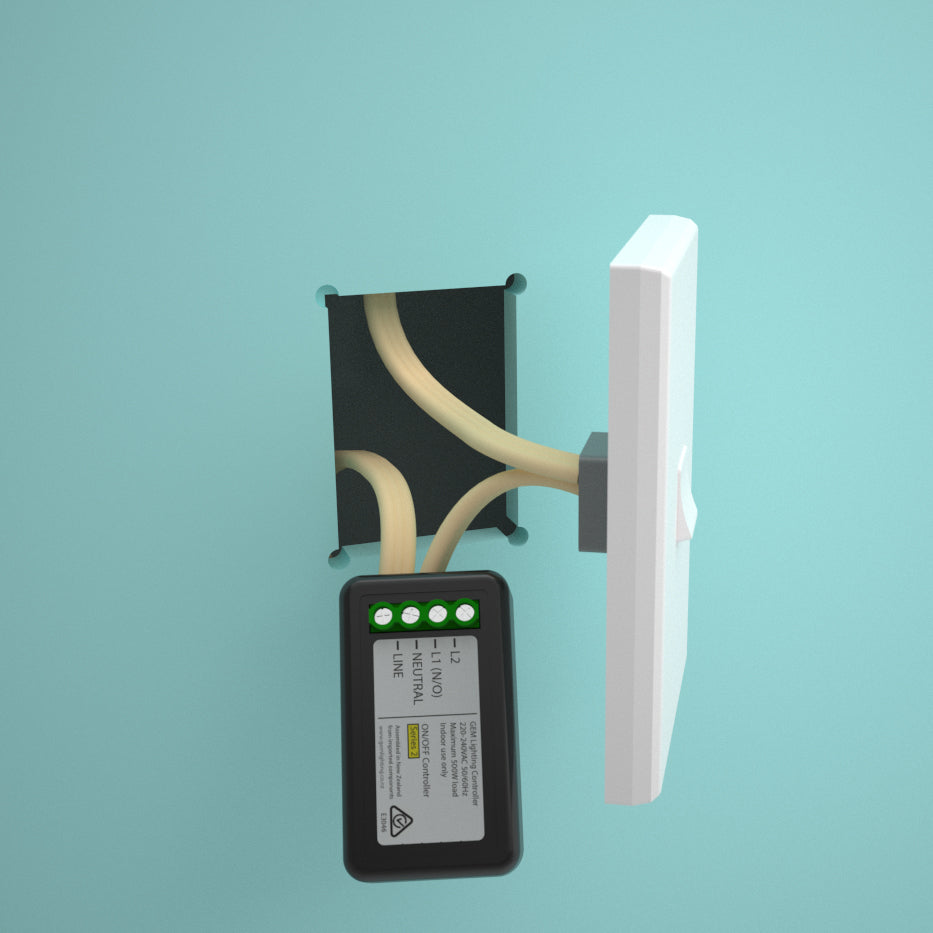

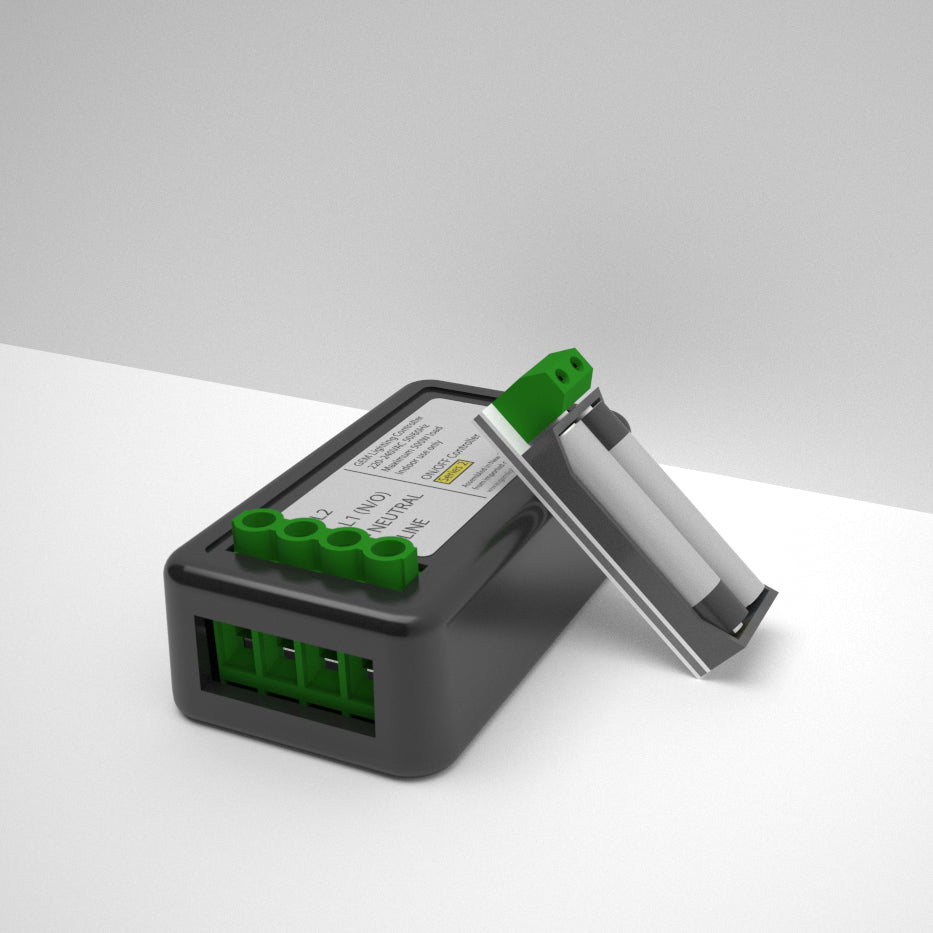

- Wireless Receiver with integrated relay.
- Wireless Switch Modules including AAAA batteries.
- A Wiring Guide and Installation Instructions.
Installation options:

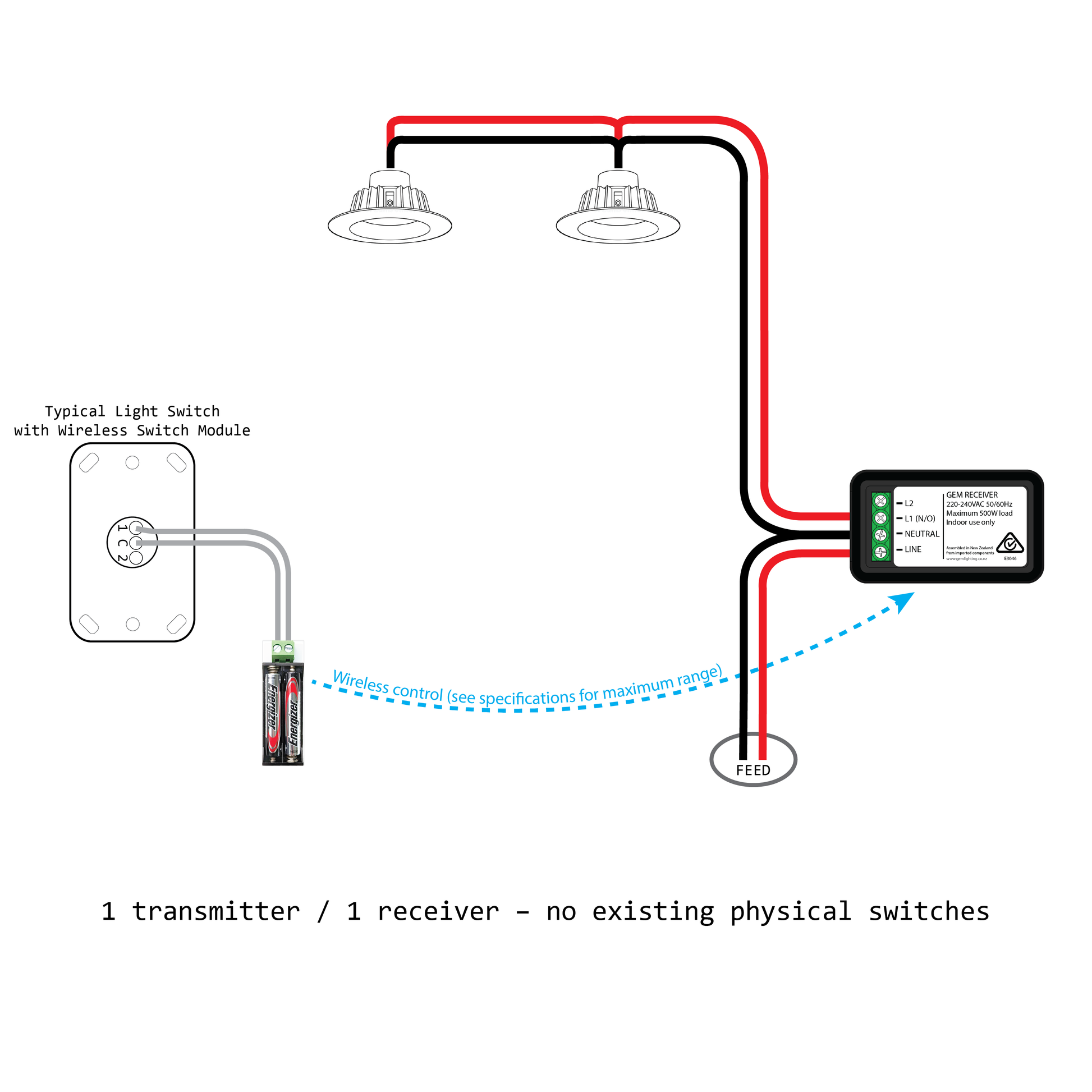

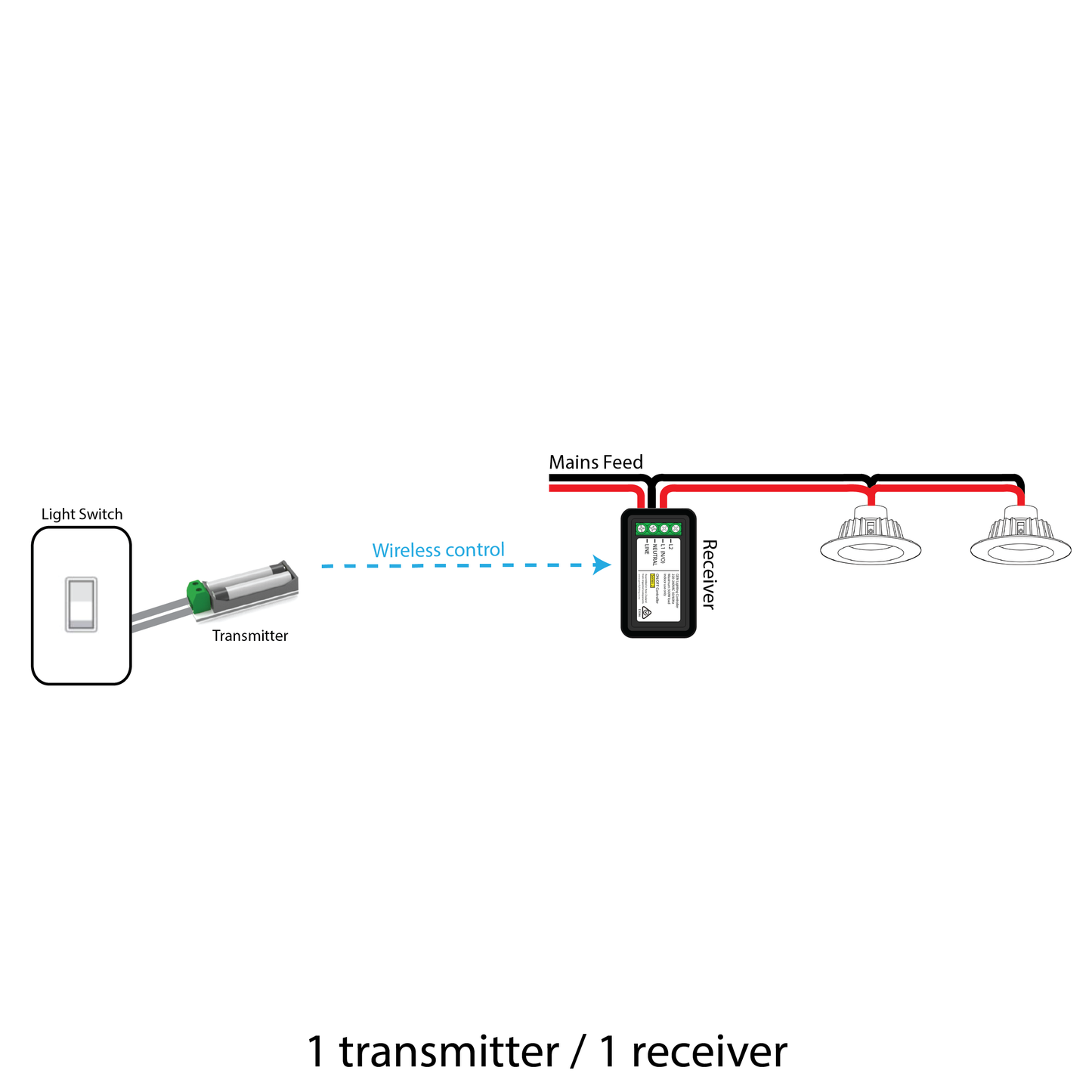

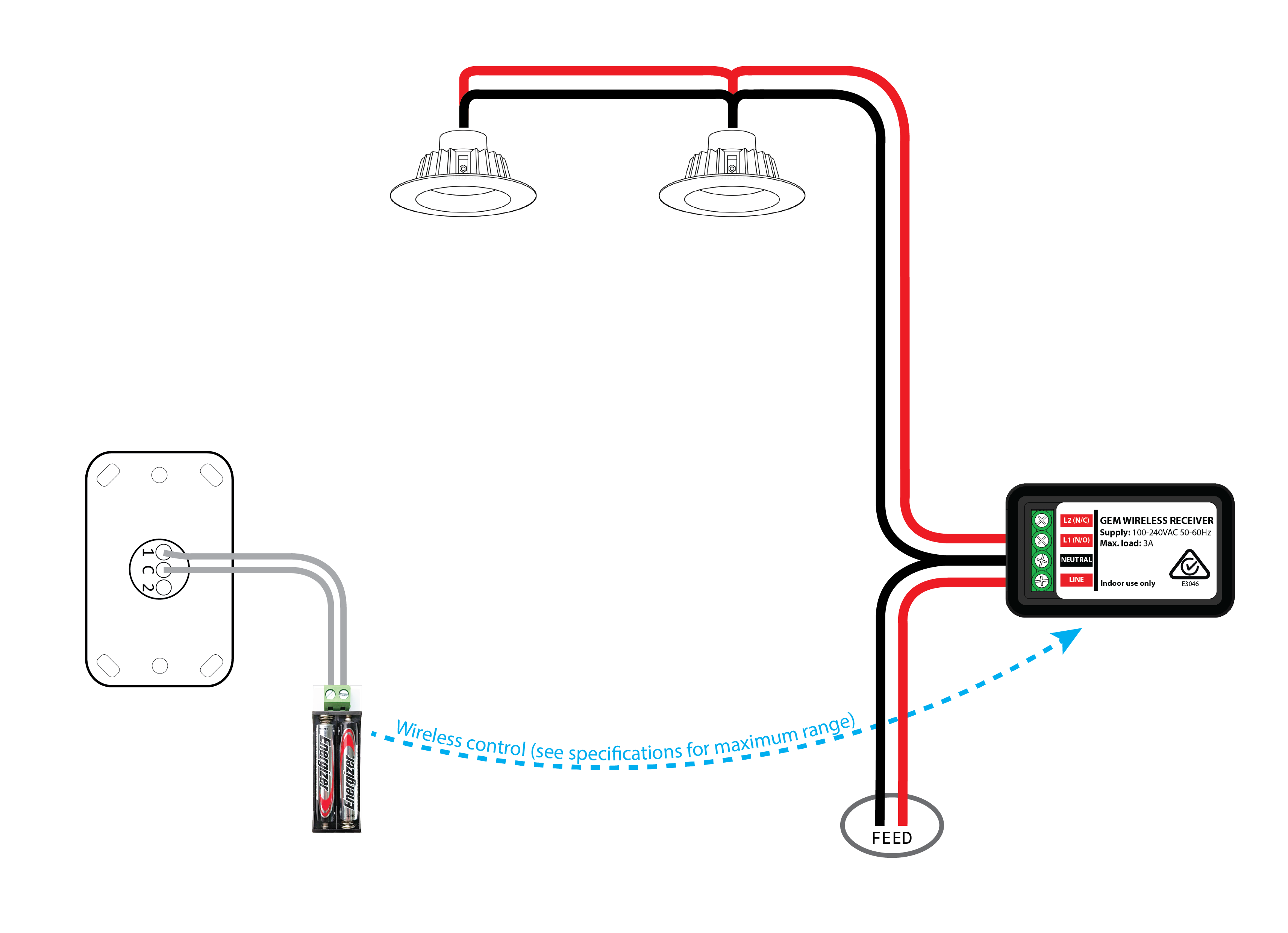

- Standalone setup: Connect the receiver directly to your lights to use wireless switches only.

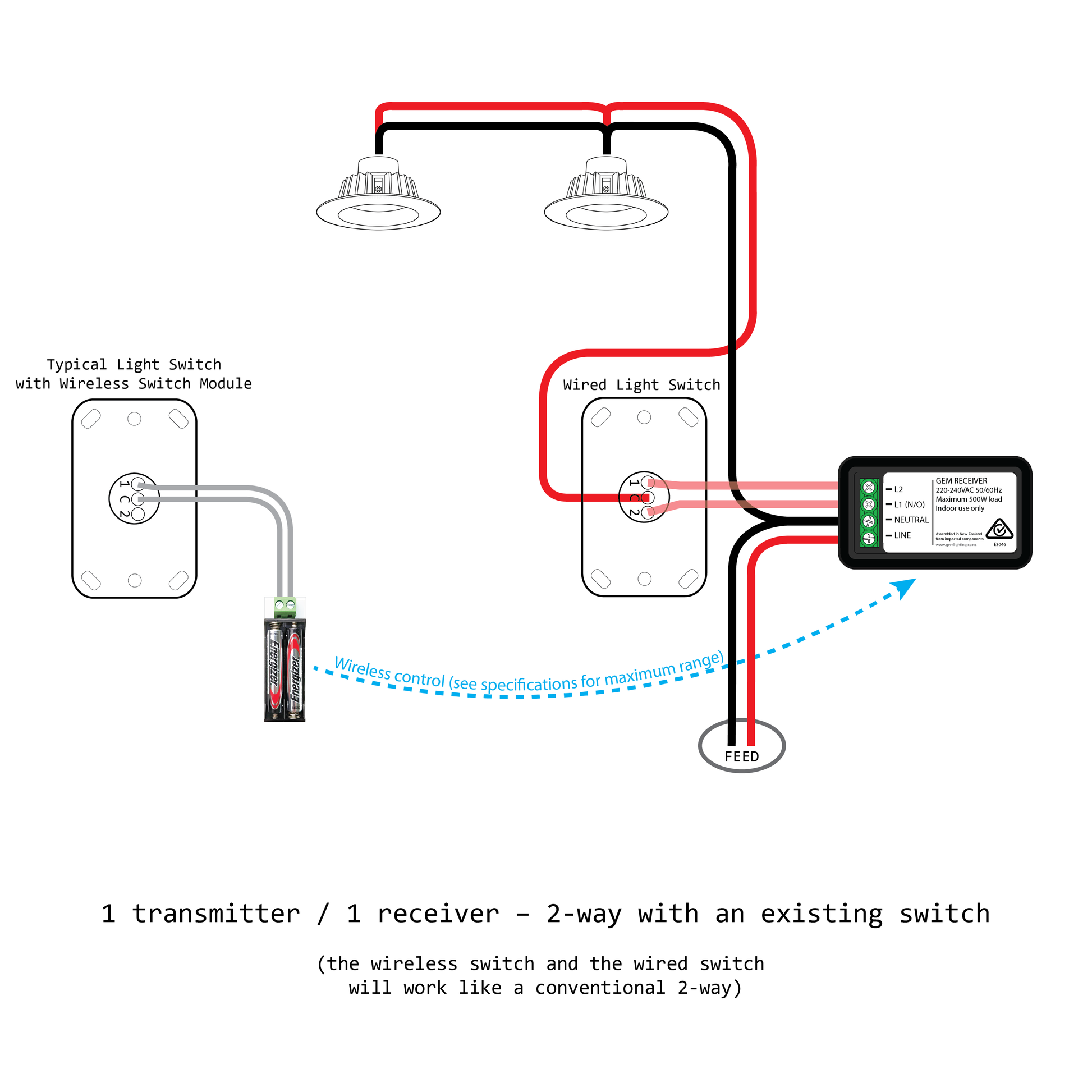

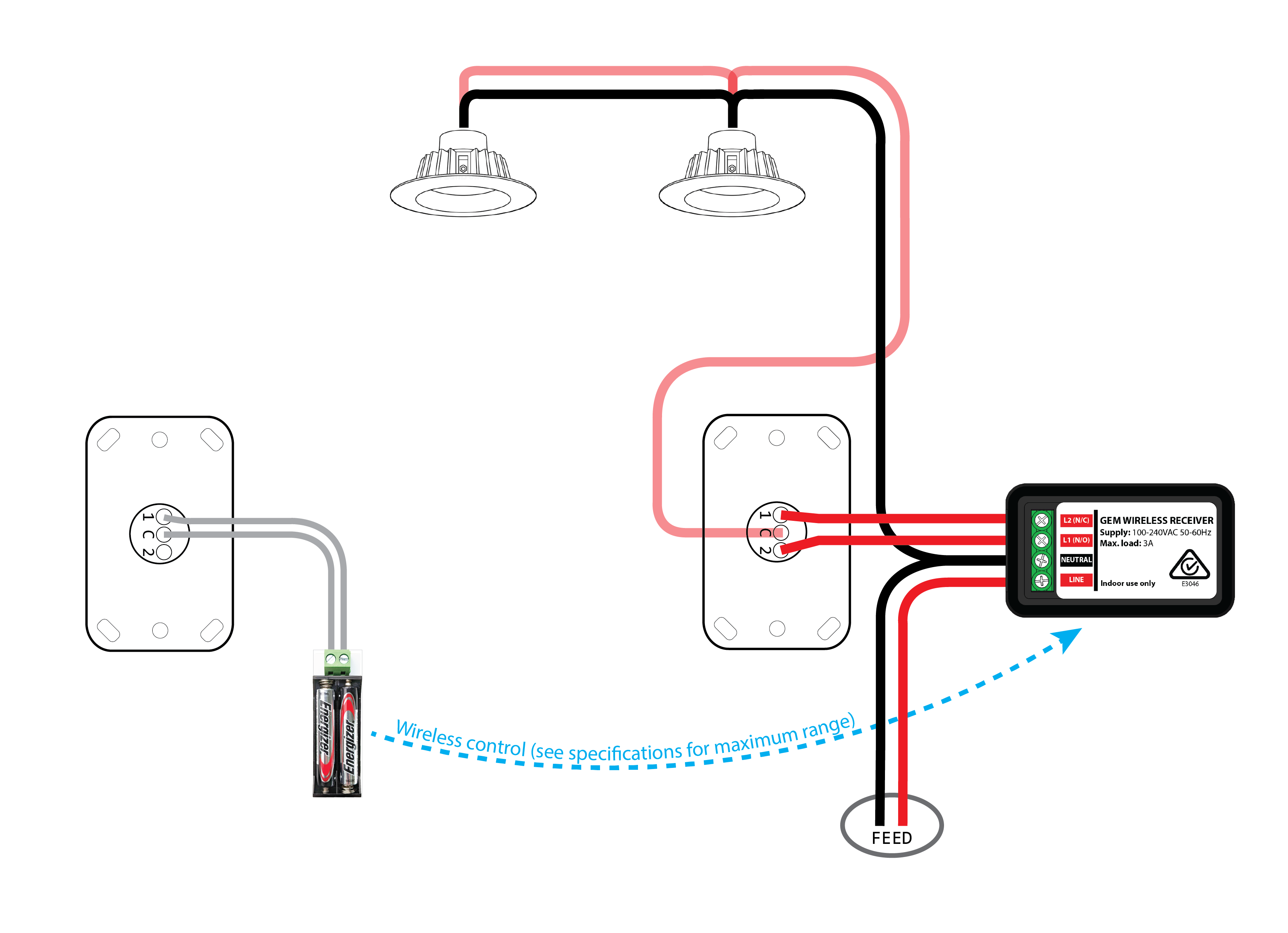

- Add on to an existing switch: Connect the receiver to your current switch to use both the physical switch and wireless switch in a 2-way arrangement.

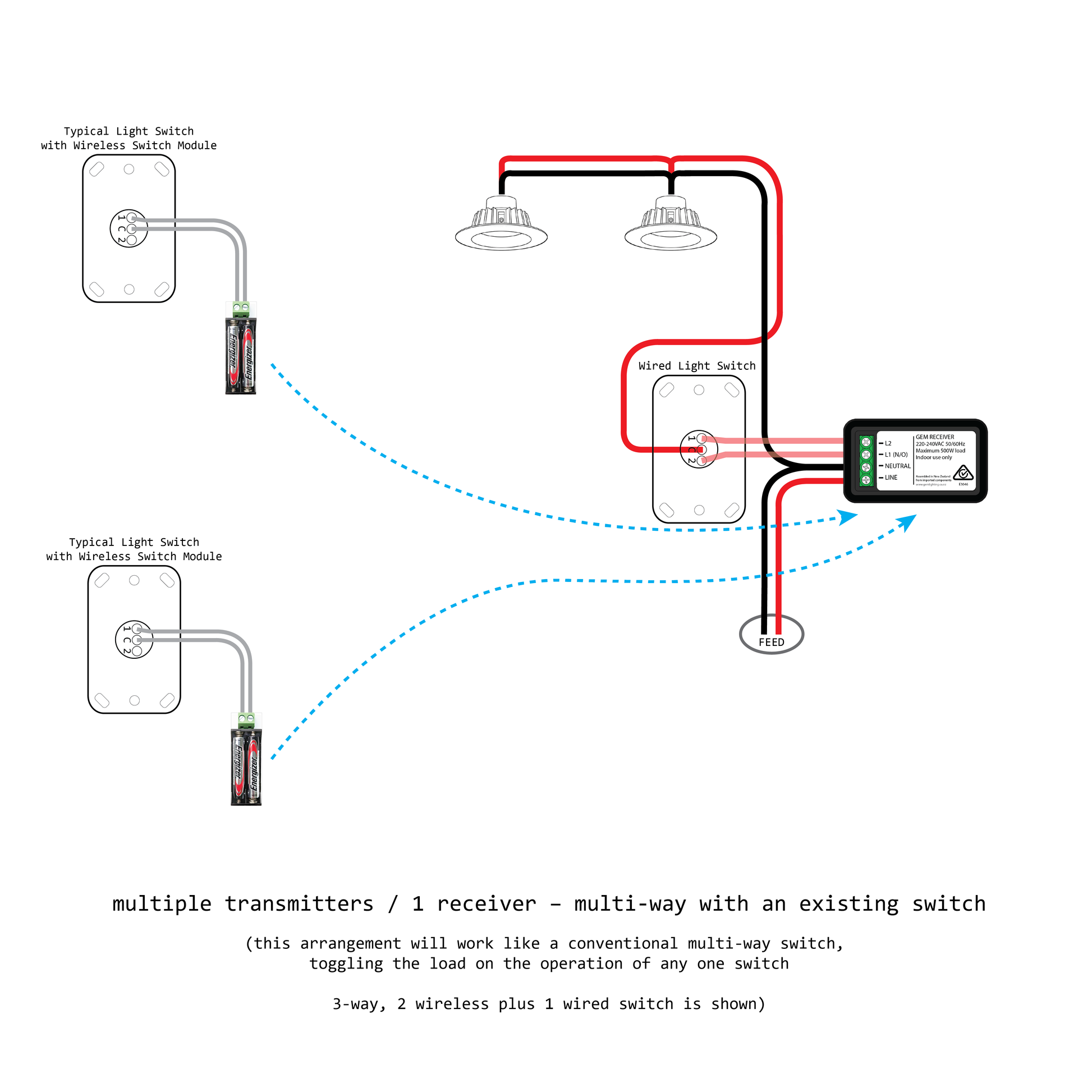

Quick tip: Already have a light switch? You only need the 1-transmitter kit to add another switch location for a 2-way setup. View the wiring diagram here.
Key features:
- No WiFi needed.
- Switch and receiver come pre-paired.

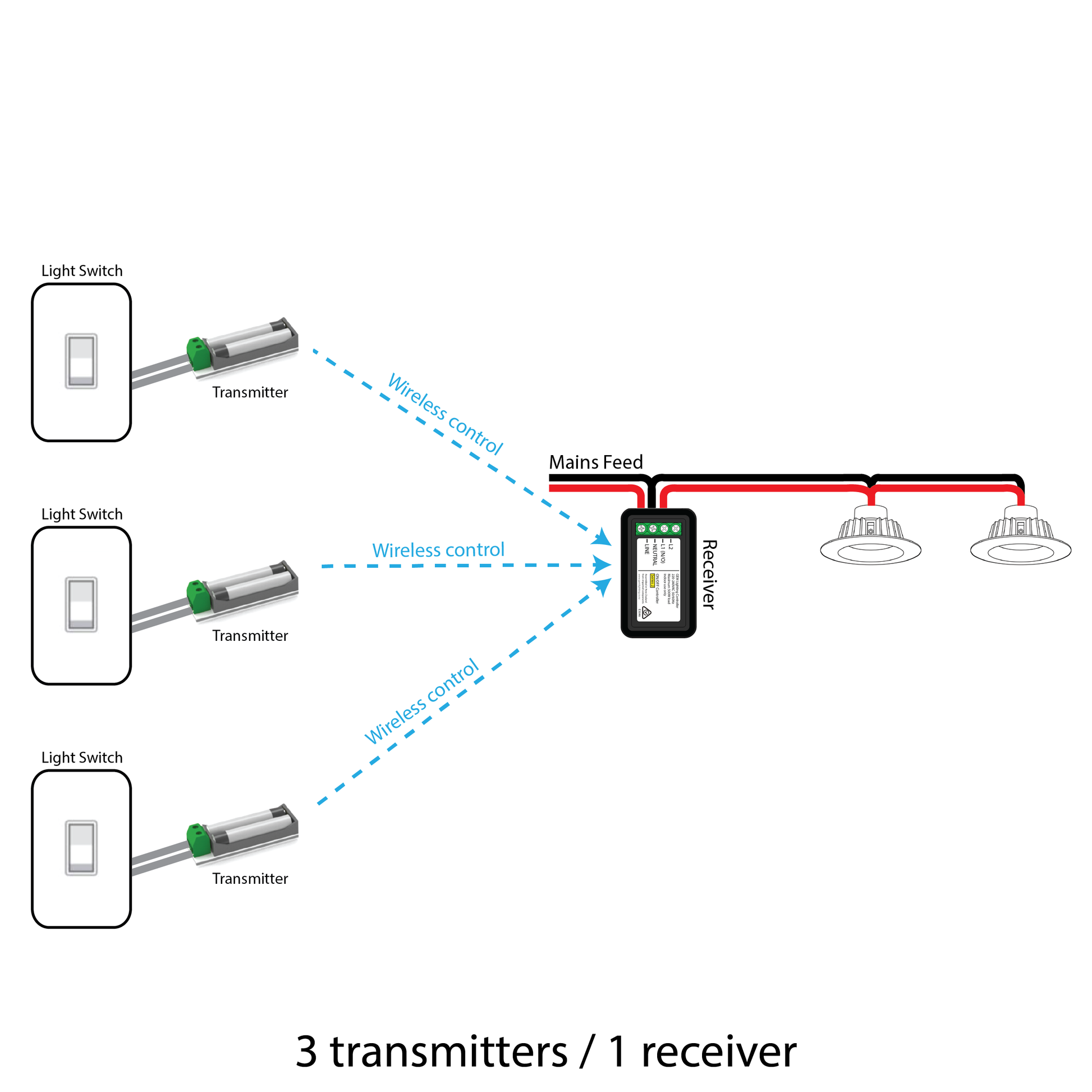

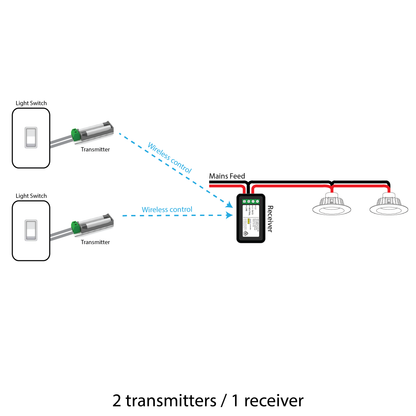

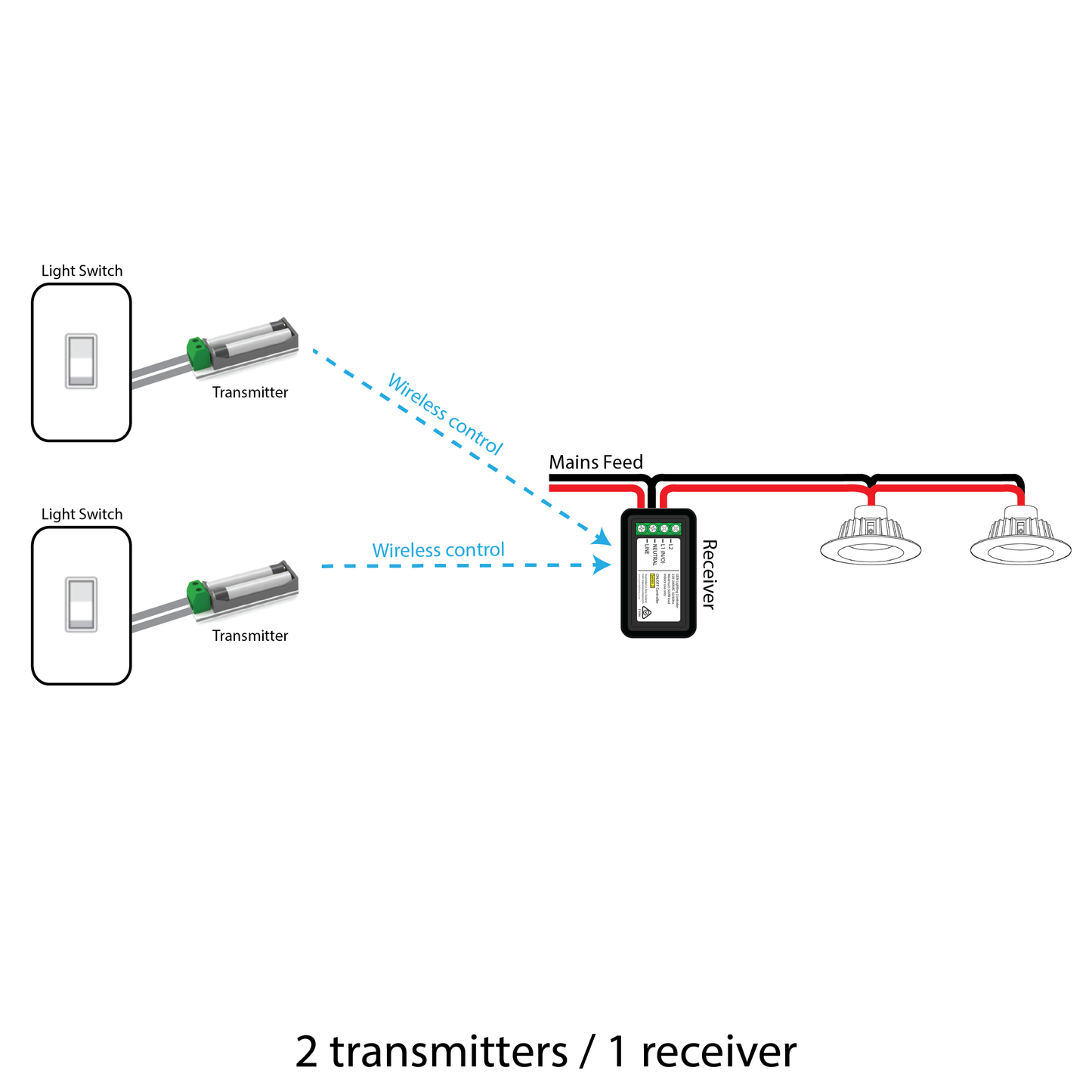

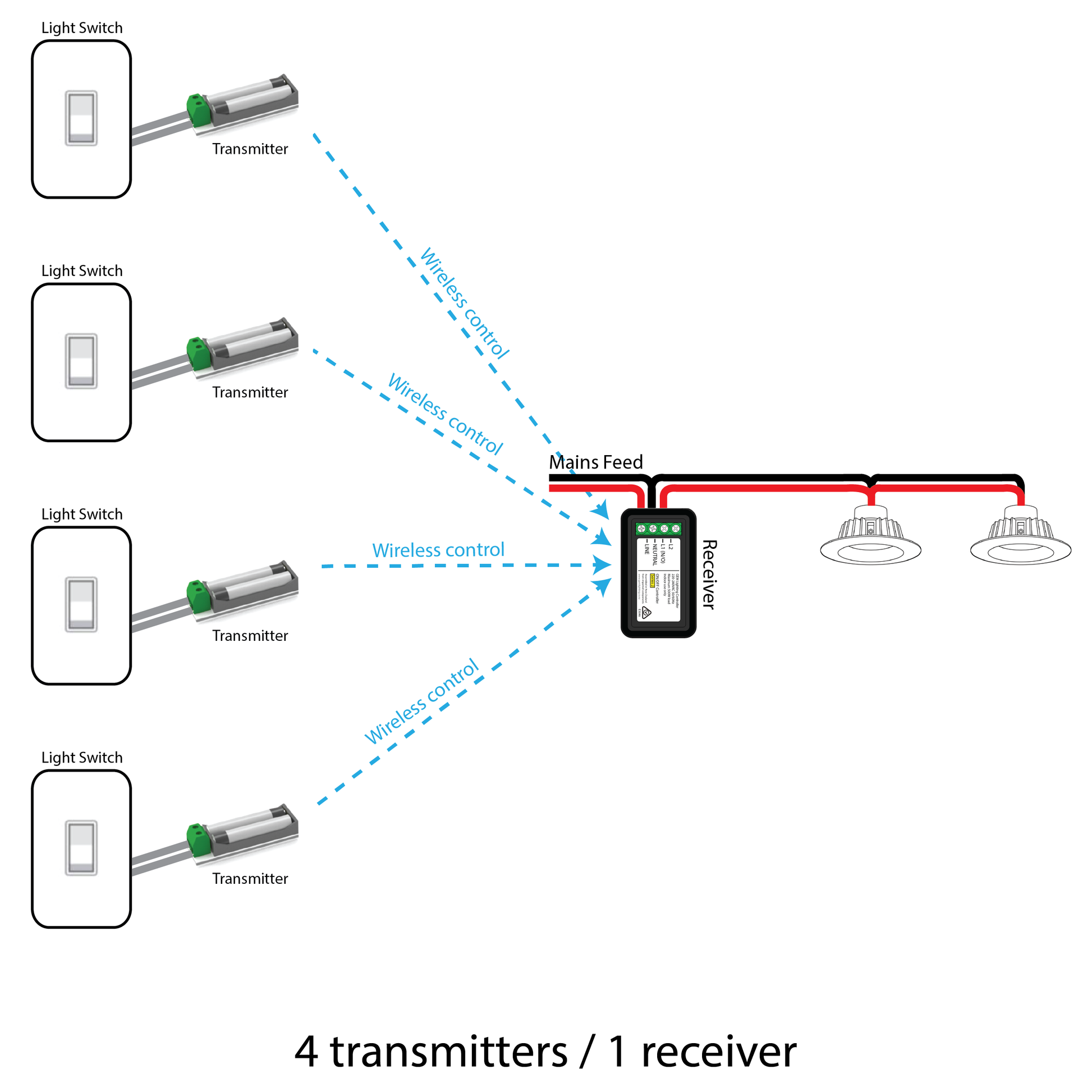

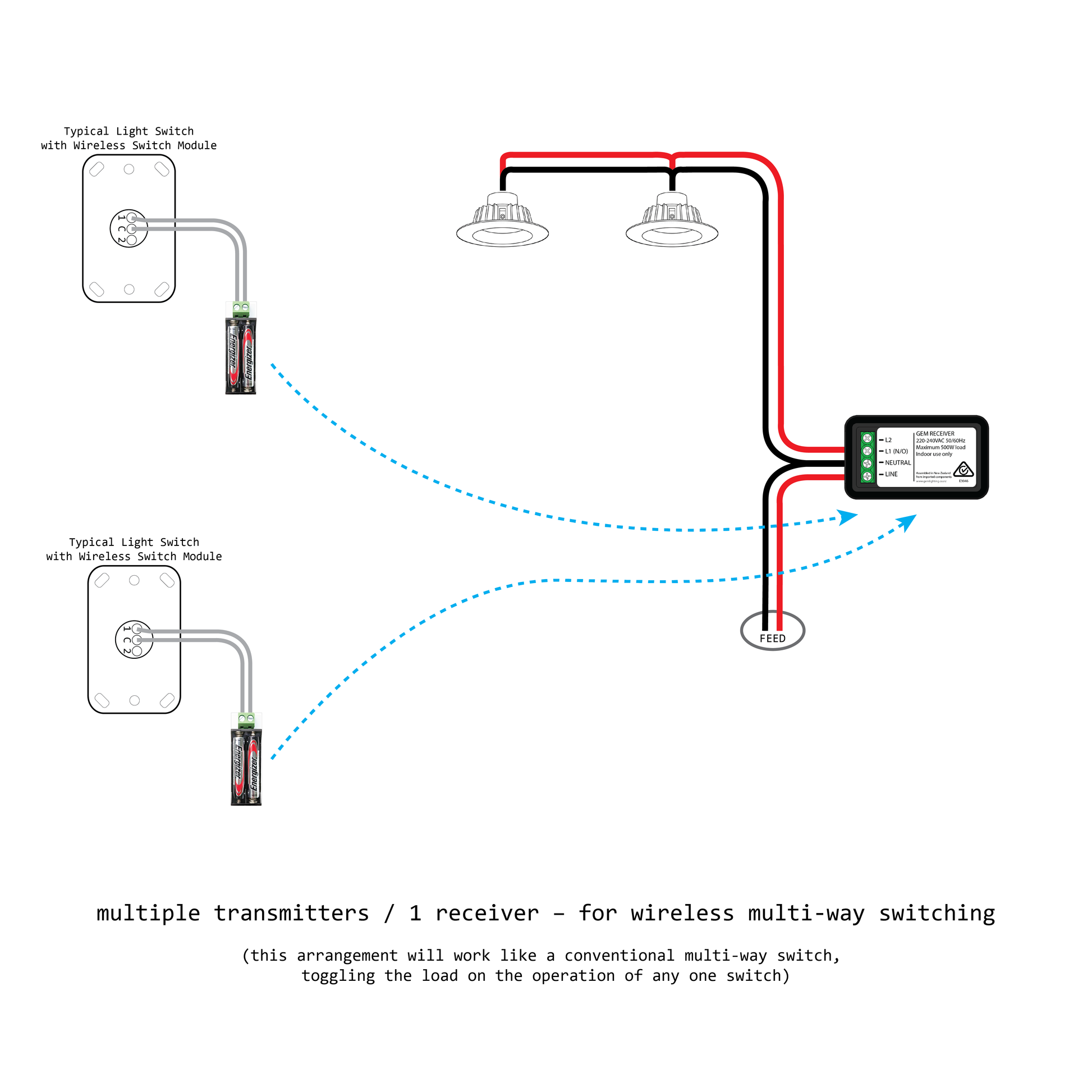

- Order multiple transmitters to switch lights from different locations.
- Signal works through walls up to 15 meters away.
- Use multiple kits in the same location without interference.
- Long battery life (5 years).
- Reliable connection with no interference from other wireless devices.
Tips for best use:
- Contactors and relays with AC coils can emit electromagnetic noise. If you intend to use such equipment nearby, ensure that there is at least 600mm separation from the receiver.
- Ambient temperature maximum is 45°C. Avoid enclosing the receiver with sources of heat like drivers, transformers, or luminaires.
- Metal sheeting can reduce the wireless range. Where possible, avoid using metal enclosures to house the units.
- Need to control gates or other momentary pulse loads? Contact our support team and we'll provide a special version designed for this purpose.
The GEM Switch Module Kit is designed and assembled in New Zealand. The product complies with the relevant AS/NZS standards and is fit for sale in Australia and New Zealand. All GEM products have a 2 year replacement warranty.
